PCB fuse holder,5 x 20mm,10A Manual Cap PCB Mount | hinew-H3-24

Short Description:

  1. Product Name:Fuse Holder
  2. model:H3-24
  3. Voltage breakdown:AC2500 1minute
  4. insulation resistance:DC 500V 100MΩ Min
  5. Rating:10A 250VAC
  6. Temperature tolerance:-20 ° C -180 ° C
  7. Standard:IEC-60335-1 GB_9364.6-2001
  8. Certification:ISO9001, ROHS,
  9. Mounting Ways:PCB Mount
  10. Material:Thermosetting silicone PBT, brass
  11. Fuse size:5*20mm Fuse
  12. Application:Suitable for circuit board installation of all electronic appliances, power supplies and other equipment


Download as PDF

Product Detail

Product Tags

HINEW h3-24 is a PCB fuse holder for 5 x 20 mm fuses mounted on printed circuit boards.Is 1/4" x 1-1/4" or 5x20 mm ring fuse mounting PCB fuse holder.This is a RoHS compliant fuse fitting.

Features

Product name:pcb fuse holder

Model: H3-24

Application :5×20mm Fuse;

Rated voltage and current :250V, 10A

Materials: plastic, metal

Color: black

5x20mm fuse holder, horizontal PCB mount, 22.6mm pin to pin spacing, no center label, 10 amperes, 250 volts, CE certification

H3-24-1



people also ask:

1.Common types of fuse holders

2.Improved Structure Of Self-compound Fuse Holder

Learn more about HINEW products

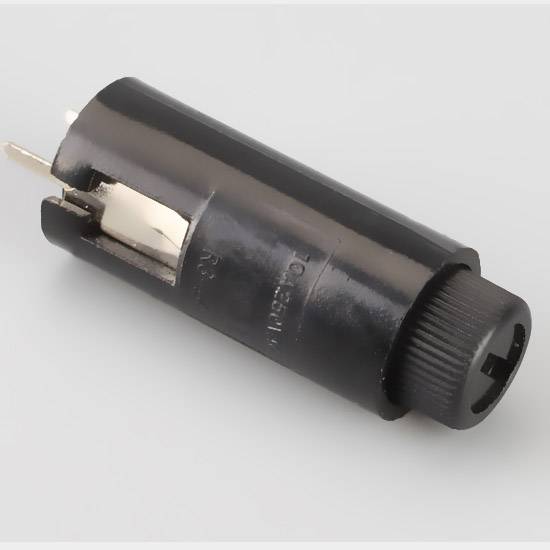

pcb fuse holder

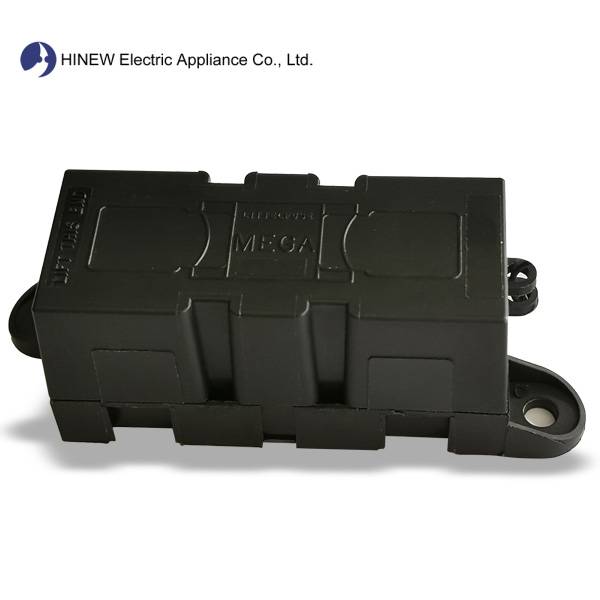

automobile fuse box

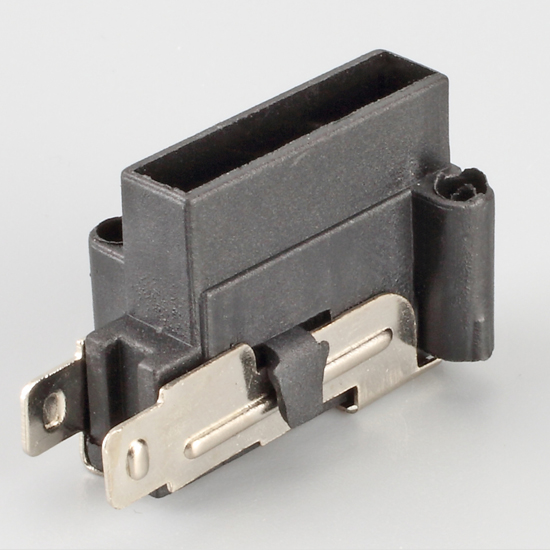

inline fuse box

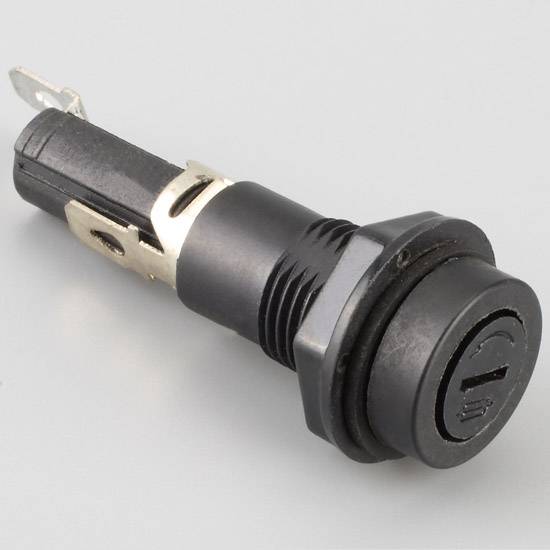

fuse holder panel mount
