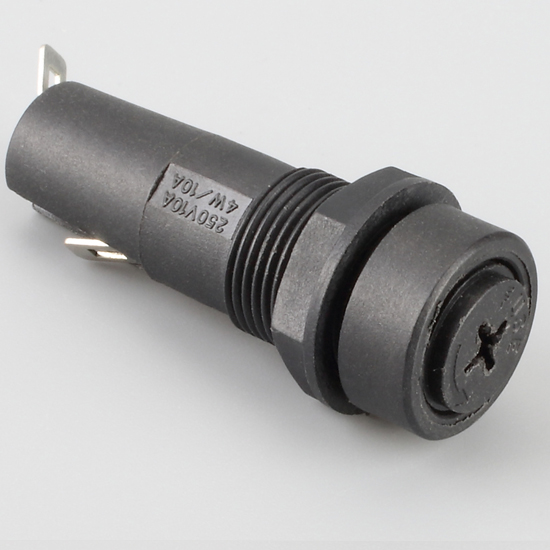

Panel mount fuse holder screwdriver release type. Suitable for applications up to 10A 250VAC max.

Quick Details

1.Product Name:Panel mount fuse holder 250v

2.Model:H3-16

3.Voltage breakdown:AC2500 1minute

4.insulation resistance:DC 500V 100MΩ M

5.Rating:10A 250VAC

6.Temperature tolerance:-20° C -150° C

7.Standard:IEC-60335-1 GB_9364.6-2001

8.Certification:ISO9001, ROHS,

9.Mounting Ways:Panel installation

10.Material:Thermosetting glue, Huang Tongtong

11.Fuse size:5*20mm Fuse

12.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
