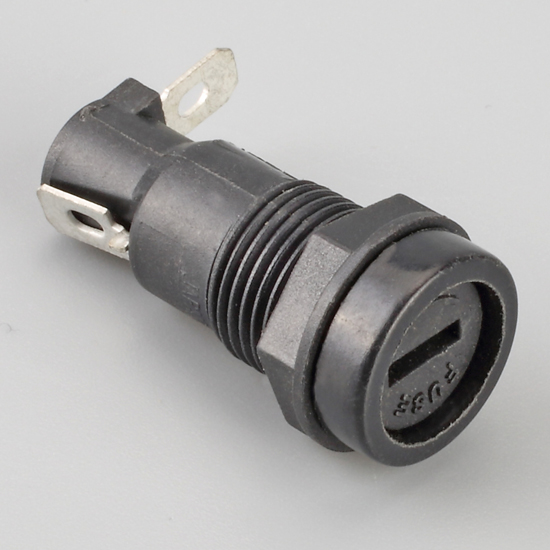

welcome to HINEW.Panel mount glass fuse holder for 5*20 Glass Fuses 250V 10A

Quick Details

1.Product Name:Fuse Holder | fuse base

2.Model:H3-17

3.Voltage breakdown:AC2500 1minute

4.insulation resistance:DC 500V 100MΩ M

5.Rating:10A 250VAC

6.Temperature tolerance:-20° C -150° C

7.Standard:IEC-60335-1 GB_9364.6-2001

8.Certification:ISO9001, ROHS,

9.Mounting Ways:Panel installation

10.Material:Thermosetting glue, Huang Tongtong

11Fuse size:5*20mm Fuse

12.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
