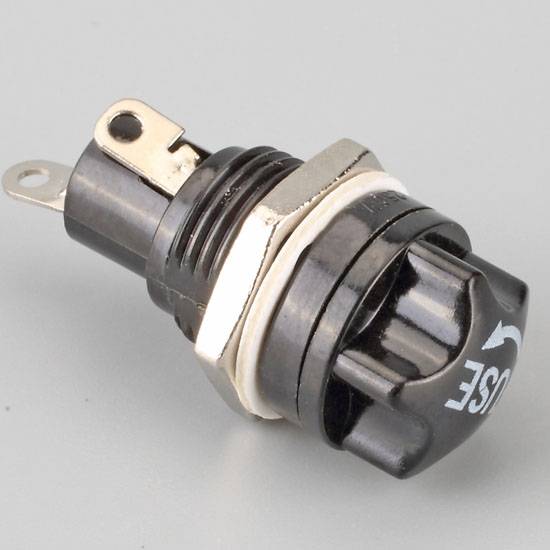

Screw cap panel mount fuse holder. 5mm x 20mm fuse carrier, Screw Cap, Screwdriver Release. Panel mount. Solder Tag Termination.

Quick Details

1.Product Name:Fuse Holder | fuse holder panel mount

2.Model:H3-26

3.Voltage breakdown:AC2500 1minute

4.insulation resistance:DC 500V 100MΩ M

5.Rating:10A 250VAC

6.Temperature tolerance:-20 ° C -150 ° C

7.Standard:IEC-60335-1 GB_9364.6-2001

8.Certification: ISO9001, ROHS,

9.Mounting Ways:Panel installation

10.Material:Thermosetting glue, Huang Tongtong

11.Fuse size:5*20mm ROHS

12.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
