Short Description:

Features and Benefits of Panel Mount Fuse Holders
• Reduce risk of damage to electrical components
• Fully enclosed plastic casing
• Small, compact and neat
• Wide variety of fuse sizes available to suit any application


  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

    1.Product Name:Fuse Holder | Panel Mount Fuse Holder

    2.Model:H3-44
    3.Voltage breakdown:AC2500 1minute
    4.insulation?resistance:DC 500V 100MΩ M
    5.Rating:15A 250VAC
    6.Temperature tolerance:-20° C -150° C
    7.Flammability class:UL94V0
    8.Standard:IEC-60335-1 GB_9364.6-2001
    9.Certification:ISO9001, ROHS,
    10.Mounting Ways:Panel installation
    11.Material:Thermosetting glue, Huang Tongtong
    12.International Approvals:CE, CQC, UL,VDE
    13.Fuse size:5*20mm,6*30 ROHS,
    14.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.

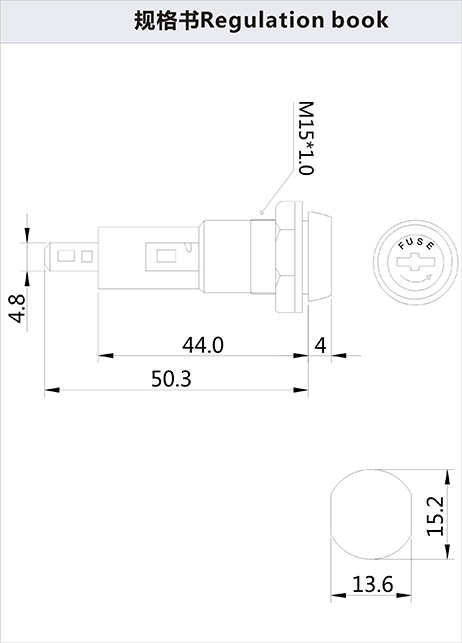

    H3-44-1

    http://www.hzhinew.com/panel-mount-fuse-holder-h3-44.html

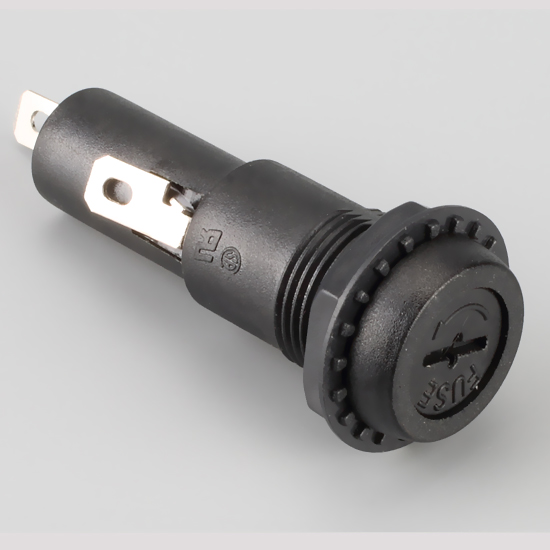

    cap panel mount fuse holder
